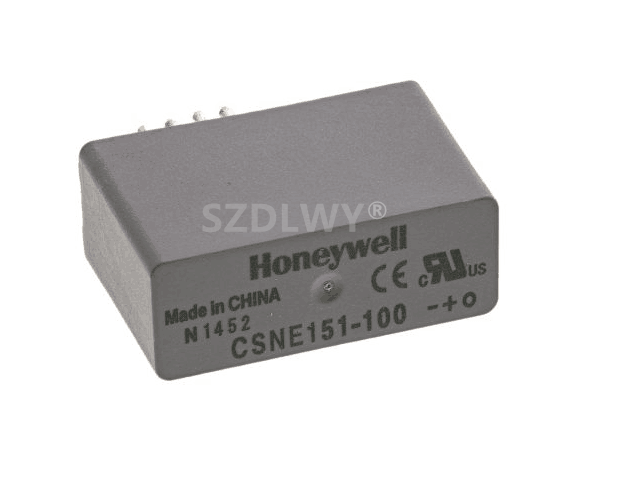

Current sensor CSNE151-100
Name: CSNE151-100 (rated current 25Arms)
Current: 25A.t rms
Continuous current: +/-50A.t
Maximum measuring current: +/-90A.t
Measuring resistance: Min 54ohm/Max 360ohm
Analog output current: 25mA
Turn ratio: 1-2-3-4: 1000
Accuracy (+25°C) for normal current (including zero offset effect): maximum +/-0.5%
Power supply voltage: +/-12~15V (+/-5%)
Current: 25A.t rms
Continuous current: +/-50A.t
Maximum measuring current: +/-90A.t
Measuring resistance: Min 54ohm/Max 360ohm
Analog output current: 25mA
Turn ratio: 1-2-3-4: 1000
Accuracy (+25°C) for normal current (including zero offset effect): maximum +/-0.5%
Power supply voltage: +/-12~15V (+/-5%)
